DG9424DQ-T1-E3 Quad SPST Analog Switch | 2.5Ω Low R(on) | Vishay Siliconix in stock
Buy Vishay DG9424DQ-T1-E3 4-Ch SPST normally open analog switch. Low on-resistance (2.5Ω), fast switching (70ns), TSSOP-16. Ideal for audio, data acquisition & signal routing. RoHS compliant.
Stock Count: 6098
Price:$TBD
SIC645AER-T1-GE3 60A VRPower® Smart Power Stage Module | Original Stock Available
Vishay SIC645AER-T1-GE3 60 A VRPower Smart Power Stage module with integrated high/low‑side MOSFETs and driver, 4.5V‑18V input, 2 MHz switching, ±3% current monitor – ideal for multiphase VRM/VRD and POL converters
Stock Count: 9099
Price:$TBD
SI4946BEY-T1-GE3 Dual N-Channel 60V MOSFET | Original Stock Available
Vishay SI4946BEY-T1-GE3 dual N‑channel 60V MOSFET with 6.5A continuous current, 41mΩ low RDS(on), 175°C junction temperature, SO‑8 package – ideal for battery protection, load switches, and DC‑DC converters. Obsolete; consider replacements.
Stock Count: 17500
Price:$TBD
VS-EPU6006-N3 Ultrafast Soft Recovery Diode | 600V/60A | TO-247AC Package | Vishay FRED Pt®
The VS-EPU6006-N3 is an ultrafast soft recovery diode from Vishay, part of the FRED Pt® series. It features a planar structure and platinum-doped lifetime control technology, delivering optimized performance with ultrafast recovery time (110ns) and low forward voltage drop (1.5V @ 60A). The device offers a 600V voltage rating, 60A average rectified current, and a peak surge current of 600A, with an operating junction temperature range of -55°C to +175°C. Its extremely optimized stored charge and low recovery current minimize switching losses and reduce over-dissipation in the switching element and snubbers. It is ideally suited for output rectification in SMPS, welding, UPS, DC/DC converters, and freewheeling diodes in low-voltage inverters and chopper motor drives. We supply 100% original, new products with ample stock, fast delivery, and professional technical support.
Stock Count: 9500
Price:$TBD
VSSAF56HM3_A/H Schottky Rectifier Diode | 60V/5A | SlimSMA Package | Vishay Automotive Grade
The VSSAF56HM3_A/H is an automotive-grade TMBS (Trench MOS Barrier Schottky) rectifier diode from Vishay, part of the eSMP series. Housed in an ultra-low-profile SlimSMA (DO-221AC) package with a typical height of just 0.95mm, it is ideal for automated placement and space-constrained designs. The device features a 60V voltage rating, 5A average forward current, and a low forward voltage drop of 0.48V typical (at 125°C, 5A). It offers low power losses, high efficiency, and a peak surge current capability of 100A. Operating junction temperature ranges from -40°C to +150°C, and it is AEC-Q101 automotive qualified. It is ideally suited for low-voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. We supply 100% original, new products with ample stock, fast delivery, and professional technical support.
Stock Count: 35000
Price:$TBD
VS-T70HF40 Power Rectifier Diode Module | 400V/70A | D-55 Package | Vishay
The VS-T70HF40 is a standard recovery power rectifier diode module from Vishay, part of the T70HF series. The module features a 400V voltage rating, 70A average forward current, and a peak surge current of up to 1.2kA. Housed in a D-55 package with an electrically isolated base plate, the semiconductor is electrically isolated from the metal base, allowing common heatsink configurations and compact assemblies to be built, simplifying mechanical design and enabling rapid assembly. It offers high surge capability, large creepage distance, and 3500V RMS isolation voltage, is UL E78996 approved, and is designed and qualified for industrial-level applications. It is ideal for power supplies, battery chargers, welders, motor controls, and general industrial current rectification. We supply 100% original, new products with ample stock, fast delivery, and professional technical support.
Stock Count: 150
Price:$TBD
WSHM28183L000FEA Current Sense Resistor | 3mΩ/7W | ±1% | 2818 Package | Vishay Automotive Grade
The WSHM28183L000FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSHM high-power series. This device features a 2818 (7146 metric) package measuring 7.10mm × 4.60mm × 1.75mm, with a resistance of 3mΩ, power rating of 7W, tolerance of ±1%, temperature coefficient of ±200 ppm/°C, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (<5nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 3500
Price:$TBD
WSK1216L5000FEA Current Sense Resistor | 0.5mΩ/5W | ±1% | 4-Terminal | 1216 Package | Vishay Automotive Grade
The WSK1216L5000FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSK series. This device features a 4-terminal (Kelvin) design that separates the current path from the sensing point, effectively eliminating contact resistance effects on measurement accuracy and reducing errors caused by copper's temperature coefficient . It features a 1216 package (3.81mm × 3.10mm × 1.9mm), with an ultra-low resistance of 0.5mΩ, power rating of 5W, tolerance of ±1%, temperature coefficient of ±150 ppm/°C, and an operating temperature range of -65°C to +170°C . Its all-welded metal element construction ensures extremely low inductance (0.5nH to 5nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics . The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing .
Stock Count: 28000
Price:$TBD
WSK2512R0100FEA Current Sense Resistor | 10mΩ/1W | ±1% | 4-Terminal | 2512 Package | Vishay Automotive Grade
The WSK2512R0100FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSK series. This device features a 4-terminal design that effectively eliminates lead resistance effects on measurement accuracy, making it ideal for high-precision current sensing applications . It features a 2512 (6432 metric) package measuring 6.35mm × 3.18mm × 0.89mm, with a resistance of 10mΩ, power rating of 1W, tolerance of ±1%, temperature coefficient as low as ±35 ppm/°C, and an operating temperature range of -65°C to +170°C . Its all-welded metal element construction ensures extremely low inductance (0.5nH to 5nH) and excellent frequency response (up to 50MHz), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics . The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 36000
Price:$TBD
WSL2512R0330FEA Current Sense Resistor | 33mΩ/1W | ±1% | 2512 Package | Vishay Automotive Grade
The WSL2512R0330FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the standard WSL series. This device features a 2512 (6432 metric) package measuring 6.35mm × 3.18mm × 0.89mm, with a resistance of 33mΩ, power rating of 1W, tolerance of ±1%, temperature coefficient of ±75 ppm/°C, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (0.5nH to 5nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 2000
Price:$TBD
WSL2512R0400FEA18 Current Sense Resistor | 40mΩ/2W | ±1% | 2512 Package | Vishay Automotive Grade
The WSL2512R0400FEA18 is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSL...18 high-power series with double the power rating of the standard WSL series. This device features a 2512 (6432 metric) package measuring 6.35mm × 3.18mm × 0.89mm, with a resistance of 40mΩ, power rating of 2W, tolerance of ±1%, temperature coefficient of ±75 ppm/°C, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (0.5nH to 5nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 62000
Price:$TBD
WSLF25121L000FEA Current Sense Resistor | 1mΩ/5W | ±1% | 2512 Package | Vishay Automotive Grade
The WSLF25121L000FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSLF series. This device features a 2512 (6432 metric) package measuring 6.35mm × 3.02mm × 0.86mm, with a resistance of 1mΩ, power rating of 5W, tolerance of ±1%, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (<2nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 16000
Price:$TBD
WSLF25122L000FEA Current Sense Resistor | 2mΩ/5W | ±1% | 2512 Package | Vishay Automotive Grade
The WSLF25122L000FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSLF series. This device features a 2512 (6432 metric) package measuring 6.35mm × 3.02mm × 0.35mm, with a resistance of 2mΩ, power rating of 5W, tolerance of ±1%, temperature coefficient as low as ±70 ppm/°C, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (<2nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 28000
Price:$TBD
WSLF25123L000FEA Current Sense Resistor | 3mΩ/4W | ±1% | 2512 Package | Vishay Automotive Grade
The WSLF25123L000FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSLF series. This device features a 2512 (6432 metric) package measuring 6.35mm × 3.02mm × 0.96mm, with a resistance of 3mΩ, power rating of 4W, tolerance of ±1%, temperature coefficient as low as ±70 ppm/°C, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (<2nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 80000
Price:$TBD
WSLF2512L5000FEA Current Sense Resistor | 0.5mΩ/6W | ±1% | 2512 Package | Vishay Automotive Grade
The WSLF2512L5000FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSLF series. This device features a 2512 (6432 metric) package measuring 6.35mm × 3.02mm × 1.68mm, with an ultra-low resistance of 0.5mΩ, power rating of 6W, tolerance of ±1%, temperature coefficient of ±200 ppm/°C, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (<2nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 9999
Price:$TBD
WSLP1206R0200FEA Current Sense Resistor | 20mΩ/1W | ±1% | 1206 Package | Vishay Automotive Grade
The WSLP1206R0200FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSLP series. This device features a 1206 (3216 metric) package measuring 3.20mm × 1.60mm × 0.635mm, with a resistance of 20mΩ, power rating of 1W, tolerance of ±1%, temperature coefficient of ±75 ppm/°C, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (0.5nH to 5nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, battery management systems, power management, and industrial controls requiring reliable current sensing.
Stock Count: 52000
Price:$TBD

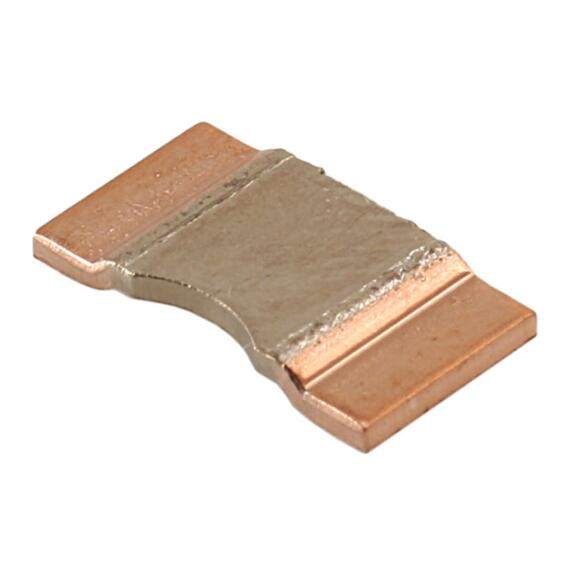

WSLP3921L2000FEA Current Sense Resistor | 0.2mΩ/9W | ±1% | 3921 Package | Vishay Automotive Grade
The WSLP3921L2000FEA is an automotive-grade Power Metal Strip® current sense resistor from Vishay Dale, part of the WSLP series. This device features a 3921 (10052 metric) package measuring 10.0mm × 5.2mm × 0.5mm, with an ultra-low resistance of 0.2mΩ, high power rating of 9W, tolerance of ±1%, and an operating temperature range of -65°C to +170°C. Its all-welded metal element construction ensures extremely low inductance (0.5nH to 5nH) and low thermal EMF (<3µV/°C), along with anti-sulfur, moisture-resistant, and pulse-withstanding characteristics, specifically designed for high-precision current sensing applications. The product is AEC-Q200 qualified, making it ideal for automotive electronics, industrial controls, power management, and battery management systems requiring reliable current sensing. We supply 100% original products with fast delivery and professional technical support.
Stock Count: 60000
Price:$TBD
